Black EP NN CP Pattern Rubber Conveyor Belt with 15mm Height and Grainy Pattern

Name: Black EP NN CP Pattern Rubber Conveyor Belt with 15mm Height and Grainy Pattern
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: ЭП100/ЭП150/ЭП200/ЭП250
Price: 54.20 USD
Availability: InStock

Наименование марки:	UCER
Номер модели:	ЭП100/ЭП150/ЭП200/ЭП250
МОК:	100 метров
цена:	Подлежит обсуждению
Время доставки:	10-30 дней
Условия оплаты:	Л/К, Д/П, Т/Т

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

Сертификация:

Enterprise credit rating AAA

Цвет:

Черный

Пропускная способность:

500 мм

Высота узора:

20 мм

Национальный стандарт:

GB/T7984-2001

Основной материал:

EP/NN/CP

Тип узора:

Зернистый узор

Угол наклона:

0-40°

Состав:

Пояс и рисунок

Упаковывая детали:

Упаковка утюга, рамка утюга или другое

Поставка способности:

10000 в месяц

Описание продукта

Black EP NN CP Pattern Rubber Conveyor Belts 15mm Height

Patterned conveyor belts are inclined conveying belts consisting of a patterned top cover rubber, a flat bottom cover rubber, and an internal belt carcass.

Pattern Types

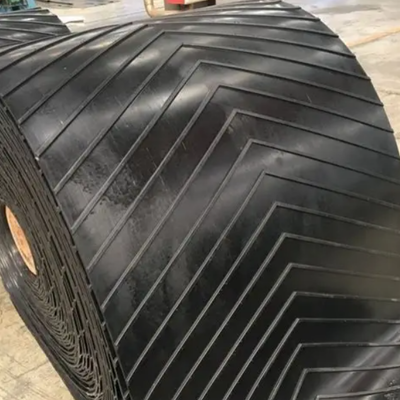

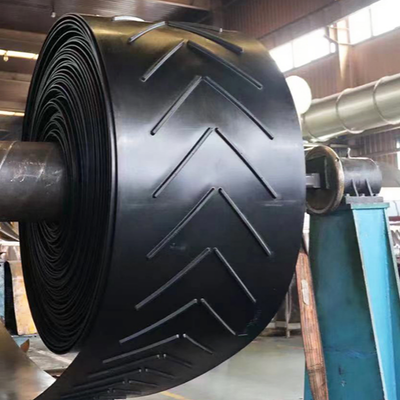

Herringbone Pattern

The characteristic belt surface has a "herringbone" pattern higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium, and low.

It is suitable for conveying powdery, granular and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials.

Striped Pattern

The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.

Purpose: Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.

Grainy Pattern

Features: There are grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.

Pattern Conveyor Belt Maintenance

During transportation and storage, the pattern conveyor belt should be kept clean to avoid direct sunlight or rain and snow
Avoid contact with acids, alkalis, oils, organic solvents and other substances
Keep away from heating devices by at least one meter
During storage, the warehouse temperature should be kept between 18-40℃, and the relative humidity should be kept between 50-80%
During storage period, the conveyor belt must be placed in a roll without being folded
Turn the belt once every season during storage
Conveyor belts of different types and specifications are not suitable to be used together
Joints should preferably be glued
The type, structure, specification and number of layers should be selected reasonably according to usage conditions
The running speed should generally not be greater than 2.5 m/s
For materials with large lumps and abrasion, speed should be as low as possible
Proper selection of transmission roller diameter, cloth layer matching, and idler groove angle according to design requirements
Feeding direction should follow the conveyor belt running direction
Use chutes to reduce material falling distance and impact
Use buffer rollers and soft baffles to prevent damage to belt surface

Product Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Тэги:
